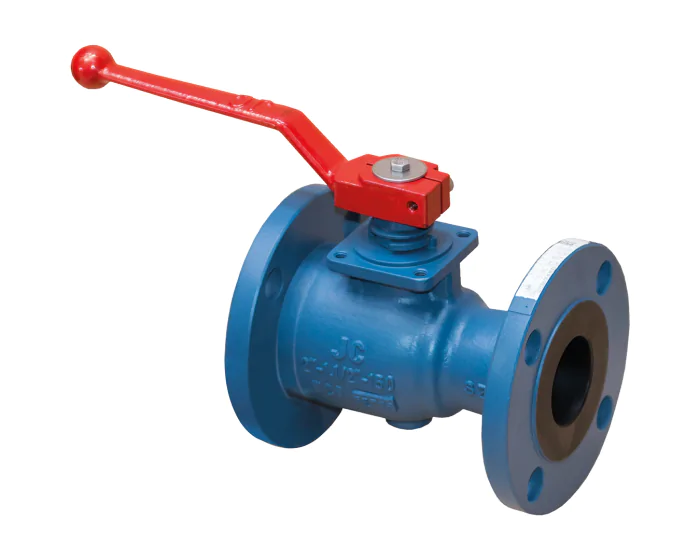

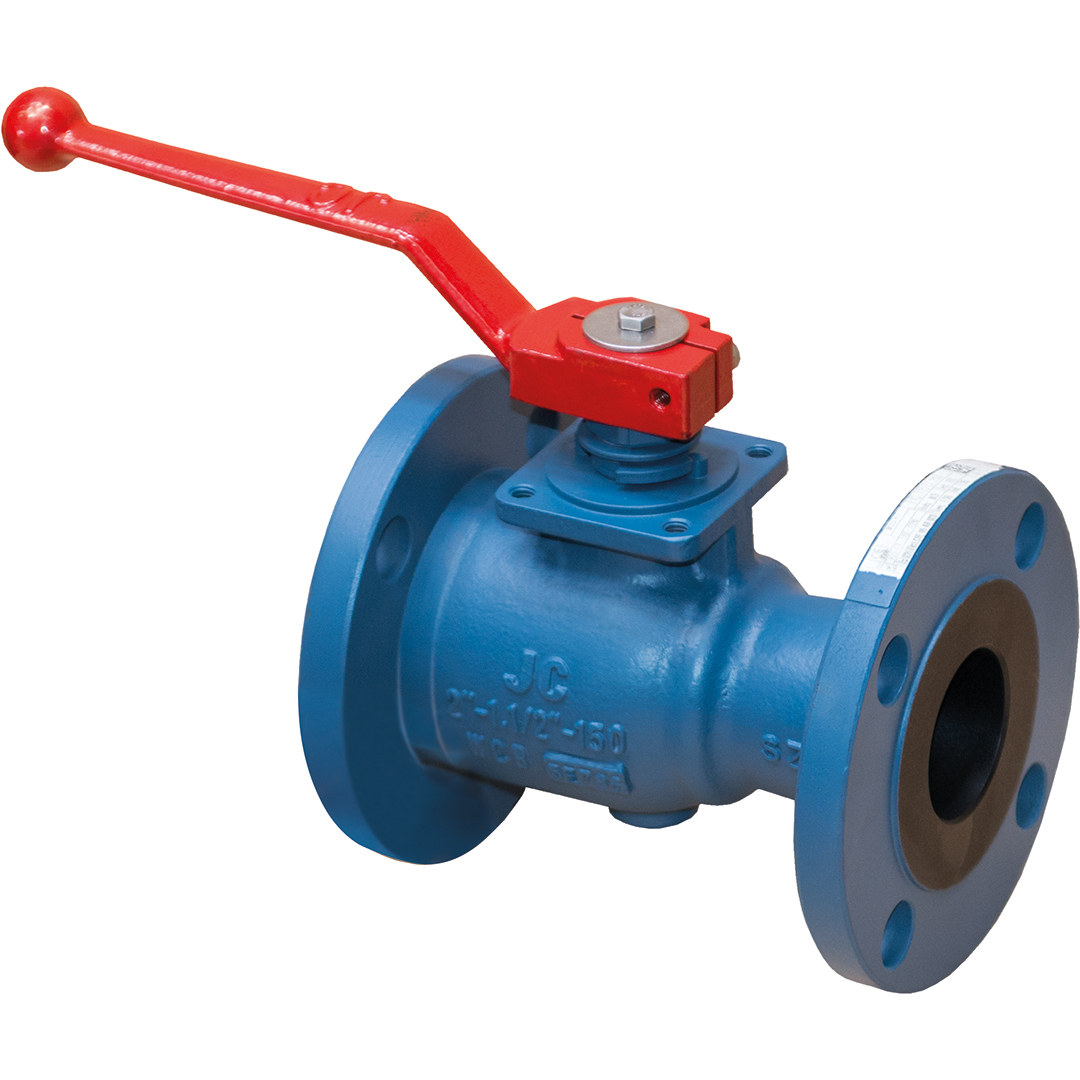

The 715AIT series ball valve, 2-piece body with flanges PN20 Class 150, steel body with PTFE seat, NACE, actuation, fire safety certified for chemical products, industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| Brand | JC VALVES |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| Application | Industry |
| Square, star (mm) | MEP M10x7 |
| ATEX compatible | Yes |
| Torque (Nm) | 8 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 108.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 7 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Reduced |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A479 Tp 316 |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 5 years |
| CE | Yes |
| Main product colour | Blue |
| Handle material | Ductile iron |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Reduced Split body DN15 - 1/2'' | 715AIT015 | S1007078 |
€120.61
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Reduced Split body DN20 - 3/4'' | 715AIT020 | S1007079 |
€136.70
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Reduced Split body DN40 - 1''1/2 | 715AIT040 | S1007080 |
€206.04
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Reduced Split body DN50 - 2'' | 715AIT050 | S1007081 |
€255.29
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Reduced Split body DN80 - 3'' | 715AIT080 | S1007082 |
€422.11
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Reduced Split body DN100 - 4'' | 715AIT100 | S1007083 |
€625.16
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Reduced Split body DN150 - 6'' | 715AIT150 | S1007084 |
€1,074.04
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Reduced Split body DN250 - 10'' | 715AIT250 | S1007085 |
€4,787.11
(excl. btw)
|
add to cart |
